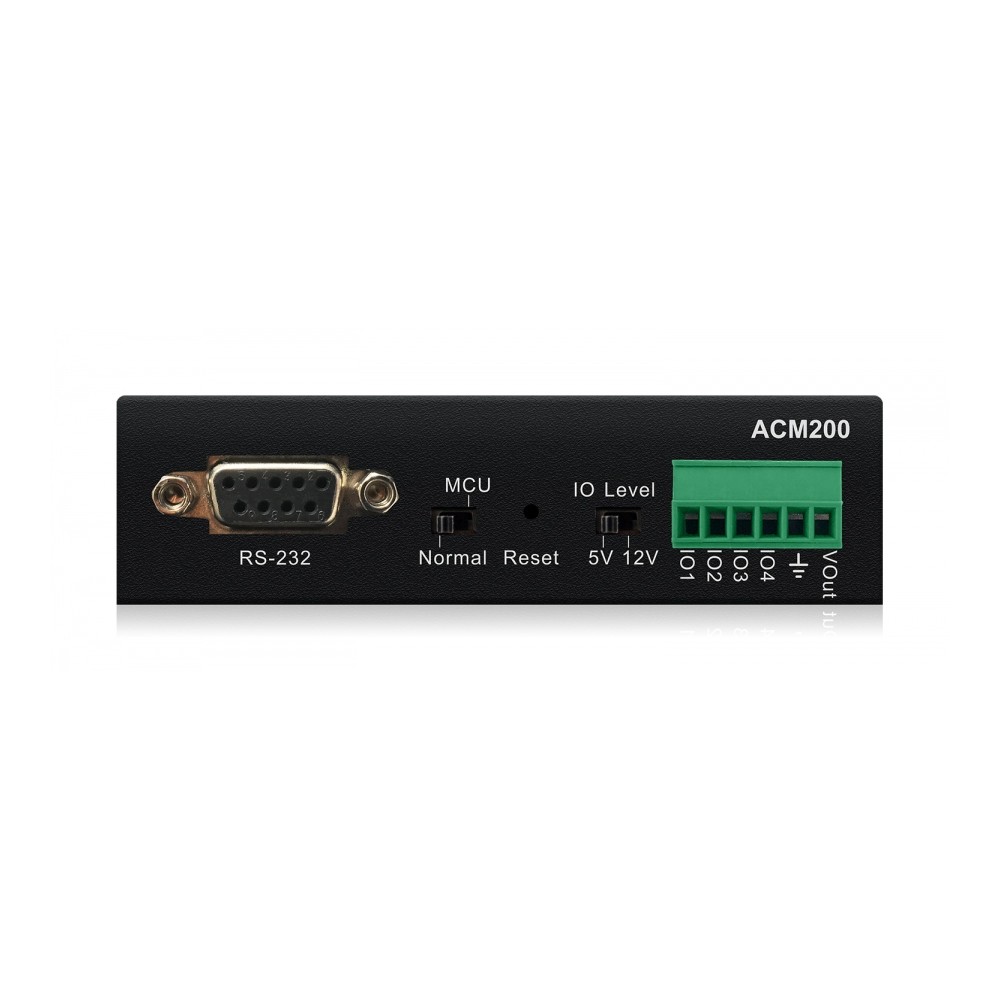

Our UHD Multicast distribution platform allows distribution of HDMI video over a 1GB Network switch. The ACM200 Advanced Control Module allows for advanced third party control of the Multicast system using TCP/IP, RS-232 and IR. The ACM200 includes a web interface module for control and configuration of the Multicast system and features 'drag and drop' source selection with video preview and independent routing of IR, RS-232, USB/KVM, Audio and Video. Pre-built Blustream product drivers simplify Multicast product installation and negate the need for an understanding of complex network infrastructures.
Key Features
Web interface module for configuration and control of the Blustream Multicast system
Intuitive 'drag & drop' source selection with video preview feature for active monitoring of system status
Advanced signal management for independent routing of IR, RS-232, USB / KVM, audio and video
Auto system configuration
2 x RJ45 LAN connections to bridge existing network to Multicast video distribution network, resulting in:
- Better system performance as network traffic is separated
- No advanced network setup required
- Independent IP address per LAN connection
- Allows simplified TCP/IP control of Multicast system
RS-232 integration for control of Multicast system
IR integration for control of Multicast system
PoE (Power over Ethernet) to power Blustream product from a PoE switch
Local 12V/2A power supply (optional) should Ethernet switch not support PoE (PSU not supplied)
Support for iOS and Android App control
3rd Party drivers available for all major home control brands
Specifications
Ethernet port: 2 x LAN RJ45 connector (1 x PoE support)
RS-232 serial port: 1 x DB-9 female
RS-232 & I/O port: 1 x 6-Pin Phoenix connector
IR Input ports: 1 x 3.5mm stereo jack
Dimensions (W x D x H ): 96mm x 110mm x 26mm
Shipping Weight: 0.6kg
Operating Temperature: 32°F to 104°F (0°C to 40°C)
Storage Temperature : -4°F to 140°F (-20°C to 60°C)
